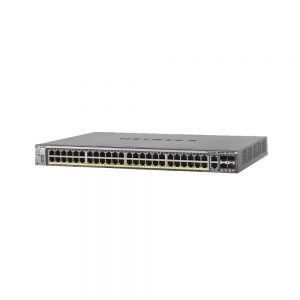

Netgear M4100-50G-PoE+GSM7248P 50‐Port ProSafe Gigabit Etharnet + 4 Giga Combo L2 Managed PoE+ Switch

Tk Call for Price

M4100-50G-POE+ is a 48 x 1000Base-T PoE+ Layer 2+ switch with 2 x 1000Base-T and 4 shared SFP, internal PSU with RPS/EPS and 380W budget with up to 1,440W with EPS

FEATURES


Layer 2+ with static routing

M4100 series comes with Port-based / VLAN-based / Subnet-based "static routing" Layer 2+ versions

L3 fixed routes to the next hop towards the destination network are added to the routing table.

L3 routing is wire-speed in M4100 series hardware with 64 static routes (IPv4)





High availability and PoE/PoE+ full power capability

Redundant power supply option for uninterruptible operation (RPS)

External power supply option for PoE and PoE+ full power applications (EPS up to 1,440W)


Engineered for convergence

Automatic multi-vendor Voice over IP prioritization based on SIP, H323 and SCCP protocol

Voice VLAN and LLDP-MED for automatic IP phones QoS and VLAN configuration

Advanced classifier-based hardware for L2, L3, L4 security and prioritization

Advanced Multicast filtering with IGMP and MLD snooping and querier modes





Industry Standard Management

Industry standard command line interface (CLI)

Fully functional NETGEAR web interface (GUI)







High-value performance and IPv6 ready

16K MAC addresses; up to 100Gbps switching fabric; 9K jumbo frames; Green Ethernet

IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - DiffServ)

TECHNICAL SPECS



    Model Description : 48 ports Gigabit PoE+ 802.3at, Layer 2+ software package
    Ordering Number : GSM7248P
    RJ45 Ports : 50 x 10/100/1000
    Fiber SFP (100/1000) : 4 x SFP
    Power over Ethernet (PoE / PoE+) : 48 x PoE+ 802.3at
    PoE Budget (Watts) : 380W / 1,440W EPS
    Redundant Power Supply : RPS
    Powered by PoE+ (Passthrough) : N/A
    Feature Set : Layer 2+ (static routing)
    Form Factor : Rack 1U – Standalone
